AFCU Model

Uses and features

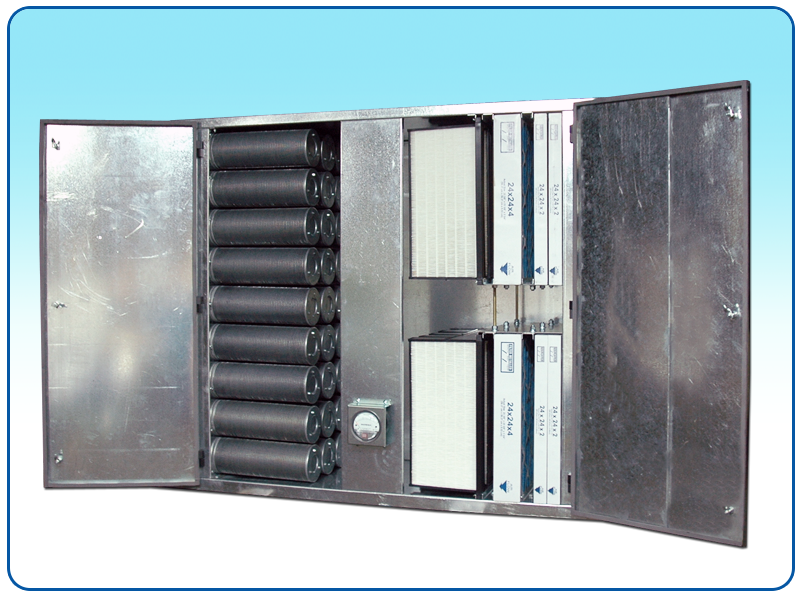

The filtration and purification unit, AFCU model, filters air from particulate matter, gas, and odors in several replaceable activated carbon filtering levels as many as HEPA H14 level.

The AFCU model uniqueness is the activated carbon bag technology that includes special seals for unfiltered pollutants dripping prevention, a common problem in all standard filtration units in the market.

The device is a solution for air filtration from different pollutants with smooth operation and maintenance due to its large size that allows convenient access to the filtration materials and service doors with locking and sealing arrangements.

AFCU model main uses:

• Filtered air supply from the environment into the building to prevent the Sick building syndrome, especially where there is an emission of VOC, fuel fumes, alcohol fumes and more.

• Polluted air suction from pollutants emission zones and air supply after filtration, such as fume cupboards, paint stations, gluing stations, etc.

• Air purification and recycle in air-conditioned areas where there’s pollutants emission with the need to maintain clean air.

Models: filtration only or in combination with internal blowers.

Filtration levels: 20%, 30%, 40%, 60%, 80%, 99.97%, activated carbon and alumina.

Air capacity: 500 - 50,000 cubic meters per hour

All the parts of the filter are Laser cut; the filter body is fully welded and built from 1.5-3 mm thick carbon steel, stainless steel or galvanized steel. A HEAVY DUTY class equipment allows long-term use of the filtration system to the customer's advantage.

User benefits

1. Very high filtration efficiency.

2. Continuous, reliable and secure work environment.

3. An industrial structure based on HEAVY DUTY.

4. The structured facility is allowing smooth operation and simple maintenance.

5. Significant financial savings with the help of spare parts.

6. Advanced airflow allows relatively low cost for the carbon replacement.

7. Variety of filtration materials by the pollutant.

8. Air filtration and purification in departments with treated air returned to work areas and air conditioning maintained.

All the facilities and systems adjusted to the customer's practical needs.
