Vortex Uses and features

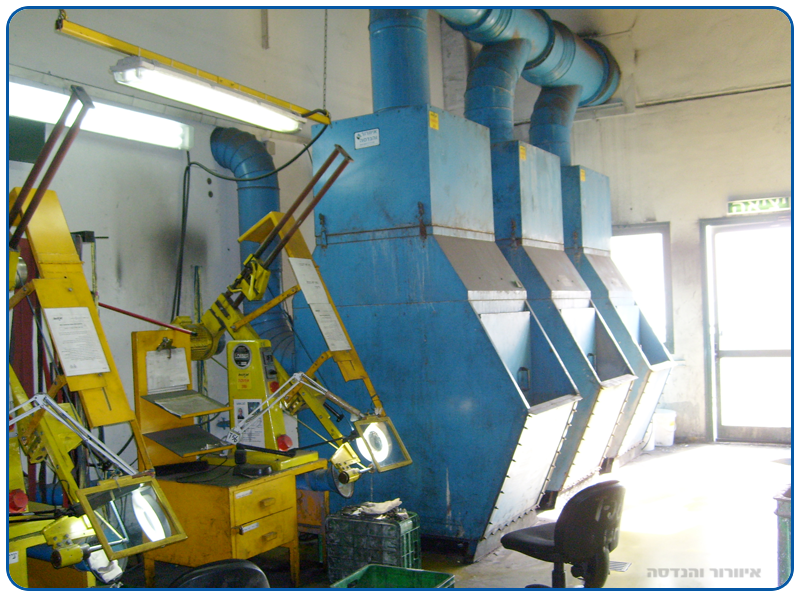

Vortex scrubber is a wet filtration vacuum system for particle separation suitable for particulate pollutants with the following characteristics: volatile, combustible, wet, moist, sticky, greasy and with high temperature. Due to these characteristics, filtration using cloth filters is not feasible. Fabric filters can be easily clogged and require further high operating expenses or have an explosion risk. The primary industrial use for vortex scrubbers is dust suction from metalworking, explosive production processes, machining apparatuses, and hygroscopic and wet chemical production.
Models:
W-400 vortex scrubber for up to 4000 cubic meters per hour [m^3/hr] flow rate

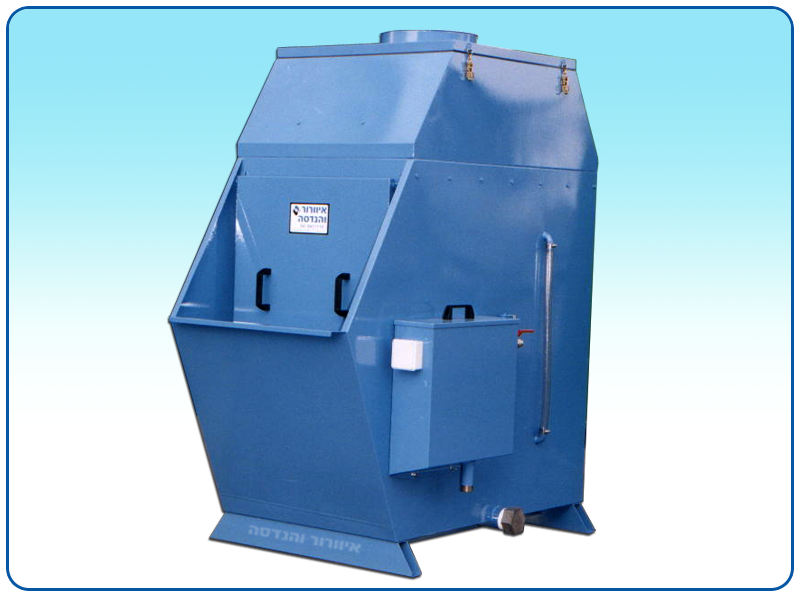

W-600 vortex scrubber for up to 6000 cubic meters per hour [m^3/hr] flow rate
W-800 vortex scrubber for up to 8000 cubic meters per hour [m^3/hr] flow rate
For higher capacities, parallel installation is possible.
Building materials:
Tinted Galvanized Steel, Stainless Steel 304, Stainless Steel 316, Polypropylene acid-resistant plastic.

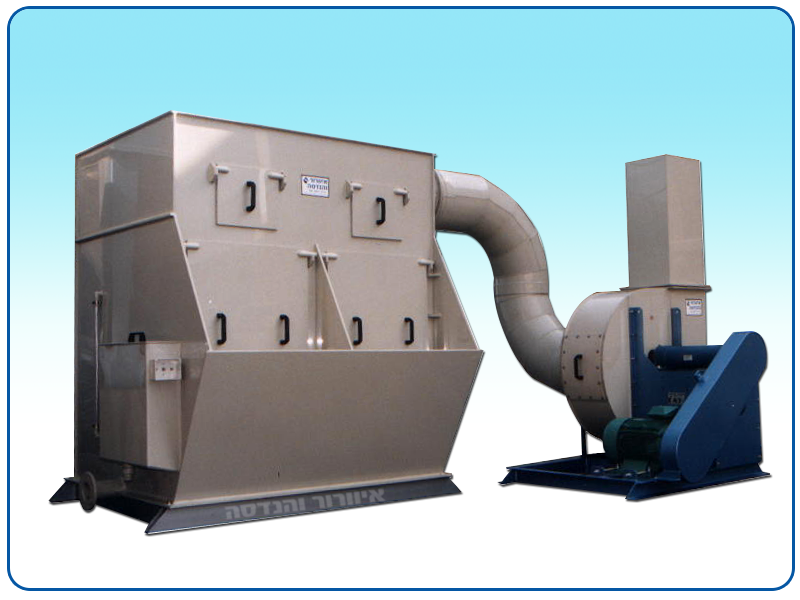

Air suction in the vortex scrubber is via external industrial bellows customized for the flow rate and pressure drop of the system at hand.
All the parts of the scrubber system have been laser-cut; the filter body is fully welded and built from thick galvanized Steel plates or Stainless Steel which provides mechanical strength and a HEAVY DUTY structure as well as process durability over time.
User benefits
High filtration efficiency and compliance with particles larger than 10 Micron.
Smooth operation and simple maintenance providing time-saving and significant financial savings on spare parts.
The blower is on the clean side of the scrubber.
Large service entry allowing convenient access for scrubber treatment.
Automatic water elevation control.
All the facilities and systems adjusted to the customer's practical needs.
